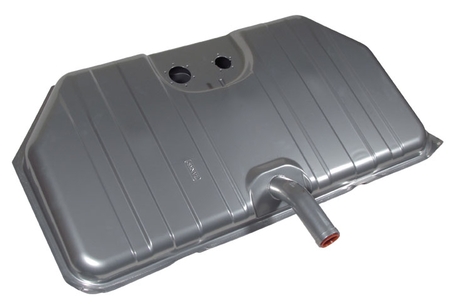

1969 Camaro Firebird Minitubbed Gas Tank EFI


This notched corner 69 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27″ to clear up to a 345 tire and 3″ exhaust. To help regain fuel capacity from the notched corners this tank is 1″ deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust. Please note that this tank will not work with narrowed leaf spring kits.

1969 Chevy Camaro and Pontiac Firebird EFI Fuel Tank
Fuel Injection Ready!

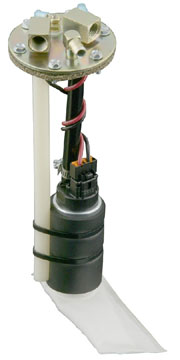

Uses our GPA series fuel pumps, available in 5 sizes.
Uses aftermarket 5-bolt senders. Multiple Ohm ranges available to work with factory or aftermarket gauges.

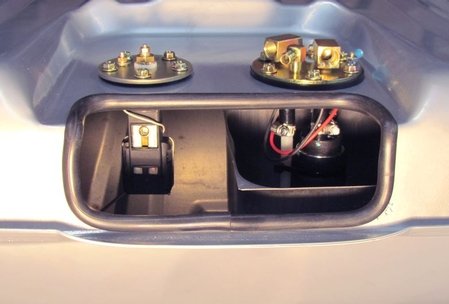

EFI style internal baffling. Extra Large 4.3 liter internal fuel tray to prevent fuel pump starvation.
Perfect for your Pro-Touring, Autocross or Road Racing Ride

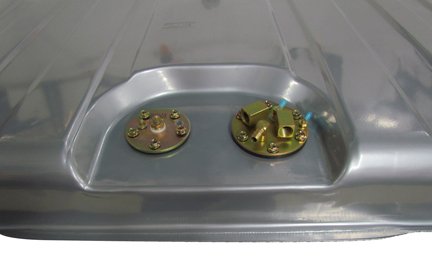

Fuel pump and sender are recessed in the tank for easy installation with no modification needed to your car.
Looks like an OE tank when installed.
Coated galvanized steel then Powder Coated Silver.
1″ Deeper than stock
Longer mounting straps included with the tank
Size is: 39-3/8″ x 20-7/8″ x 8-3/4″

SKU: TM32BN-T-kit Category:


Finally, an affordable fuel tank for minitubbed 1st Gen F-bodies!
These tanks are steel with a silver powdercoat finish. Choose your EFI pump module and sending unit type. Tanks also include new straps, new rubber strap liner, and 2 aluminum #6 AN fitting adapters.

These are not for narrowed leaf spring cars. Designed for aftermarket rear suspension systems.
