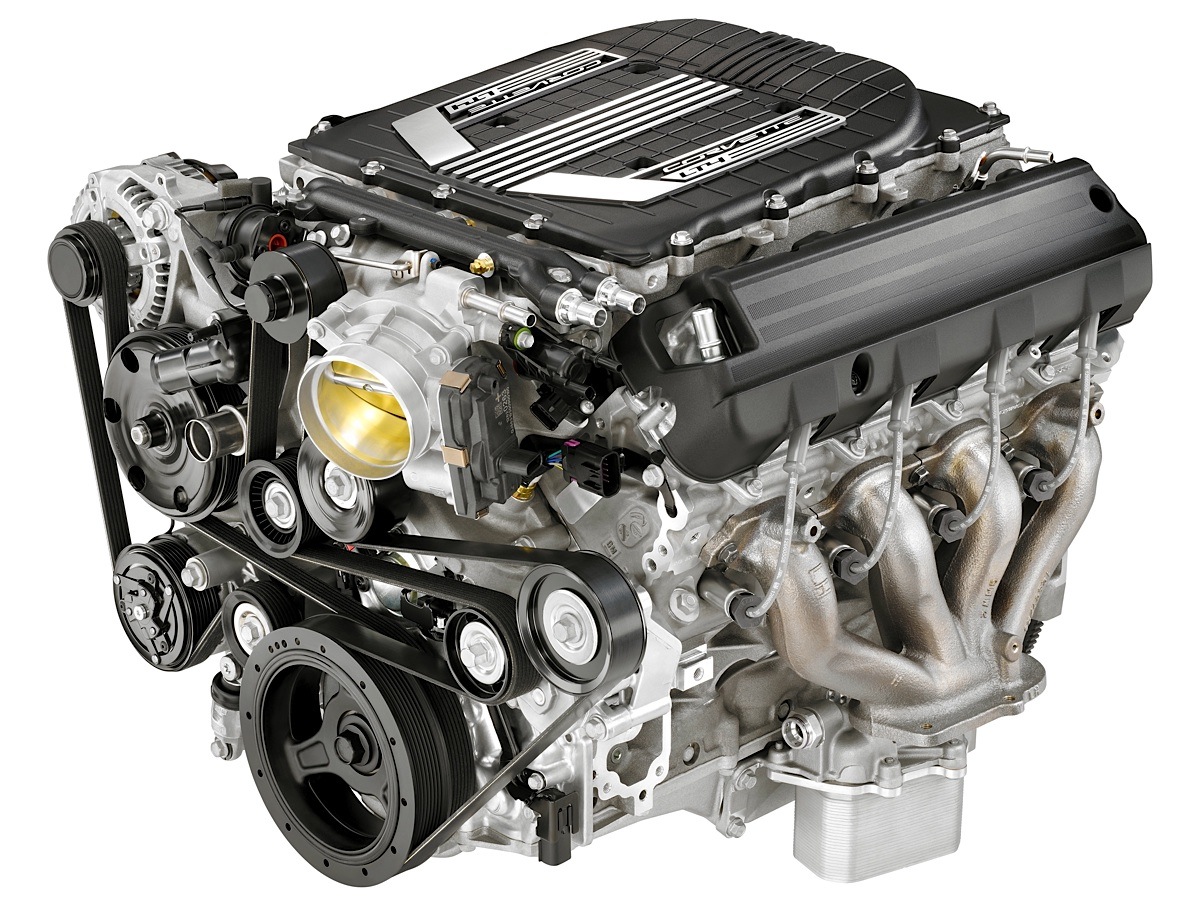

LT4 Supercharged Crate Engine 6.2L 650hp DRY Sump Gen 5 19416595

$15,769.56

As heart of the new Corvette Z06, the supercharged LT4 6.2L SC is the most powerful engine ever offered in a regular production Chevrolet. Its 1.7L supercharger generates more than 9 pounds of boost which produces 650 horsepower and 650 lb.-ft. of torque.
$5 SHIPPING WITHIN 48 STATES

SKU: 19416595 Category: Tags: , , ,

Description

As heart of the Corvette Z06, the supercharged LT4 6.2L SC is the most powerful engine ever offered in a regular production Chevrolet. It features a more-efficient, more-compact 1.7L Eaton R1740 TVS supercharger, which spins at up to 20,000 rpm. That’s enough to generate more than 9 pounds of boost and help produce 650 horsepower and 650 lb.-ft. of torque.
The LT4 is based on the same Gen V Small-Block architecture as the LT1 engine, with several unique features designed to support its higher output and the greater cylinder pressures created by forced induction. They include Rotocast A356T6 aluminum cylinder heads that are stronger and handle heat better than conventional castings, lightweight
titanium intake valves and stronger forged aluminum pistons.

TECH SPECS
Part Number:
19417413 (wet sump)
19416595 (dry sump)
Engine Type: Gen V Small-Block V-8
Displacement (cu in): 376 cu in (6.2L)
Bore x Stroke (in): 4.065 x 3.622 (103.25 x 92mm)
Block: Cast aluminum with 6-bolt, cross-bolted main caps
Crankshaft: Forged steel
Connecting Rods: Forged powdered-metal steel
Pistons: Forged aluminum
Camshaft Type: Hydraulic roller
Valve Lift (in): 0.492 intake / 0.551 exhaust
Camshaft Duration (@0.050 in): 189° intake / 223° exhaust
Cylinder Heads: A356T6 Rotocast aluminum; as cast with 65.5cc chambers
Valve Size (in): 2.130 intake / 1.590 exhaust
Compression ratio: 10:1
Rocker Arms (P/N 12619829): Investment cast, roller bearing trunnion
Rocker Arm Ratio: 1.81:1
Recommended Fuel: Premium pump
Maximum Recommended RPM: 6,600
Reluctor Wheel: 58x
Balanced: Internal

INSTALLATION NOTES
• Assembly does not include electronics – use P/N 19331517 LT4
controller kit to operate engine
• Includes engine oil cooler
• Flywheel included
• Intended for pre-1976 street vehicles or any off-road vehicles
• Not intended for marine applications
• Crankshaft has 8-bolt flywheel mounting pattern (Same as LT1 and LSA)
• Engine includes direct injection, VVT and Active Fuel Management
