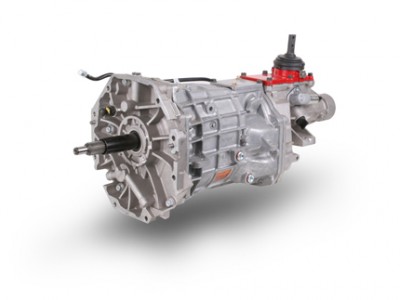

Tremec T56 Magnum 6-speed transmission

$3,444.25

***WE DO NOT TAKE ORDERS OVER OUR WEBSITE FOR TRANSMISSIONS. ITEM AVAILABILITY DEPENDS ON SUPPLIER. YOU MUST CALL TO ORDER AND FILL OUT PAPERWORK. IF YOU ORDER VIA OUR WEBSITE, THE ORDER WILL NOT BE PROCESSED. SHIPPING WILL BE DETERMINED UPON ORDERING THE PRODUCT***

Choose the best off-the-shelf 6-speed available!
Available in a wide gear ratio or the close-ratio. See below for more information & gear ratios.

Call 815-206-2230 to Order
Categories: ,

Description

The aftermarket’s premier 6-speed performance manual transmission!
-700 lb-ft. of torque capacity
-Reasonably light at 135 lbs. dry
-Multiple shifter locations & dual speedo pickups for unmatched versatility
-Choice of two different gear ratio sets (2.66 or 2.97), with unique double overdrive ratios
-Incredibly short, extremely low-effort shift throws, with crisp, precise engagement
-Modern OE supercar technology for the ultimate pro-tourers, road-racers, and more.

-Wide ratio option has less top speed (more relative RPM) in 1st through 3rd gears, but more top speed (less relative RPM) in 5th/6th as compared to the Close Ratio option.

WIDE RATIO GEARBOX:
1st: 2.97
2nd: 2.10
3rd: 1.46
4th: 1.00
5th: .80
6th: .63

CLOSE RATIO GEARBOX:
1st: 2.66
2nd: 1.78
3rd: 1.30
4th: 1.00
5th: .80
6th: .63

To calculate your RPM at given speeds & gears, visit http://www.ringpinion.com/calculators/calc_rpm.aspx
