Hellcat Supercharger Intercooler Manifold Adapters – Billet Aluminum AN
$399.00 – $410.00
Our billet aluminum Hellcat supercharger intercooler manifold adapters will gain you firewall clearance on your swap project!
These were designed by Schwartz Performance, and CNC machined out of T6061 aluminum in the USA.
Choose from machined finish or black anodized, with or without connecting hoses.
Scroll down for additional details.

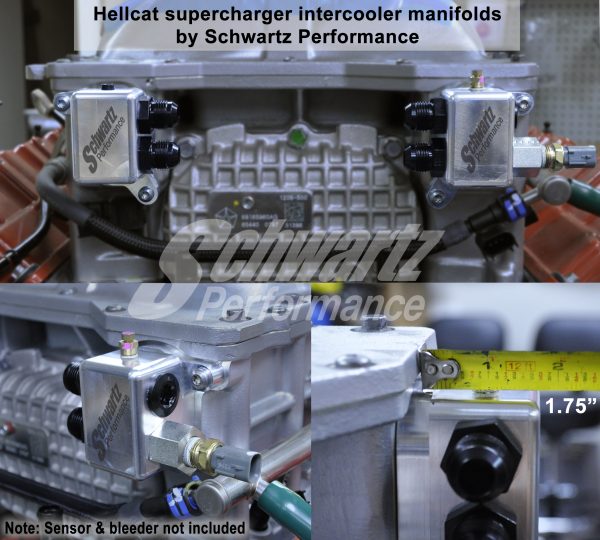

Make your Hellcat swap a little easier by ditching the large cast intercooler manifold on the factory Hellcat / Demon superchargers, and replace with our exclusive billet adapters!
The passenger side manifold is about 1 inch shallower than the factory Hellcat piece, NOT INCLUDING the pesky temp sensor that sticks off even further!
With our manifolds, you can choose your own path for the intercooler hoses, and use #10 AN hose instead of ugly rubber hose or attempting to adapt factory hoses.
Our kit includes:
-(1) LH and (1) RH billet aluminum manifold
-(4) #10 AN to O-ring adapters
-(1) #10 AN to NPT fitting adapter for temp sensor
-(1) 1/8″ NPT allen plug
-(1) #10 O-ring low profile allen plug
OPTIONAL & RECOMMENDED ADD-ON:
-(2) Assembled #10 AN hoses for connecting the two manifolds together
***You will need to furnish the in/out side of the blocks to your reservoir/pump/heat exchanger using #10 AN O-ring adapters of your choice. Straight or 45 degree swivel adapters will work, with a 90 or 45 degree hose end attached.***
ITEMS TO REUSE OR SOURCE FROM A PARTS STORE/DEALER:
-(1) Mopar water temp sensor
-(1) 1/8NPT bleeder
-(4) Torx button head bolts
